操作步骤

1. 打开云容器引擎集群控制台，点击集群名称。

2. 选择工作负载菜单，点击无状态，进入无状态列表页。

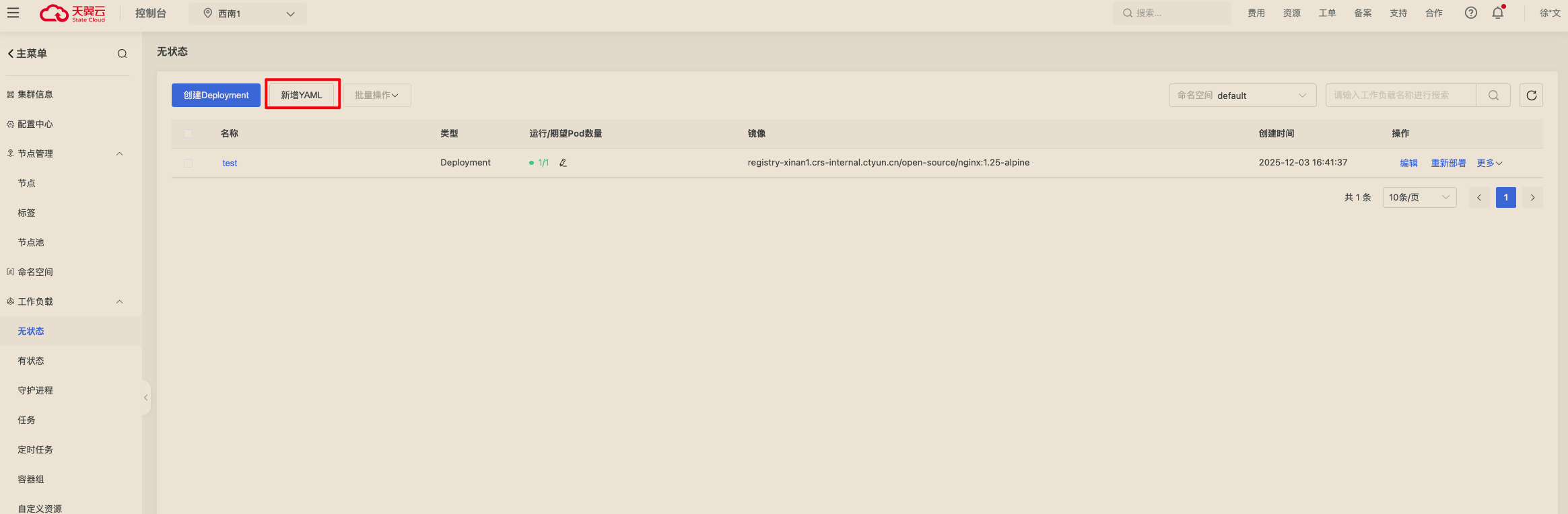

3. 点击“新增YAML”按钮。

4. 为Pod 添加注解，以Deployment 为例：

k8s.ctyun.cn/eci-with-eip: "true"     # 可选，设置则自动分配 EIP
k8s.ctyun.cn/eip-bandwidth: "5"     # 可选，单位 Mbps，默认 5Mbps

Deployment 完整模板

apiVersion: "apps/v1"
kind: "Deployment"
metadata:
  annotations:
  generation: 1
  labels:
    app: "nginx"
  name: "test-eip"
  namespace: "default"
spec:
  progressDeadlineSeconds: 600
  replicas: 1
  revisionHistoryLimit: 10
  selector:
    matchLabels:
      app: "nginx"
  strategy:
    rollingUpdate:
      maxSurge: "25%"
      maxUnavailable: "25%"
    type: "RollingUpdate"
  template:
    metadata:
      annotations:
        k8s.ctyun.cn/eci-with-eip: "true"
        k8s.ctyun.cn/eip-bandwidth: "5"
      labels:
        app: "nginx"
    spec:
      containers:
        image: "registry-xinan1.crs-internal.ctyun.cn/open-source/nginx:1.25-alpine"
        imagePullPolicy: "IfNotPresent"
        name: "nginx"
        ports:
        - containerPort: 80
          protocol: "TCP"
        terminationMessagePath: "/dev/termination-log"
        terminationMessagePolicy: "File"
      dnsPolicy: "ClusterFirst"
      nodeName: "vnd-bsb398x4k2oz06kn-cn-xinan1-xn1a-public-ctcloud"
      restartPolicy: "Always"
      schedulerName: "default-scheduler"
      terminationGracePeriodSeconds: 30

nodeName: "vnd-bsb398x4k2oz06kn-cn-xinan1-xn1a-public-ctcloud"

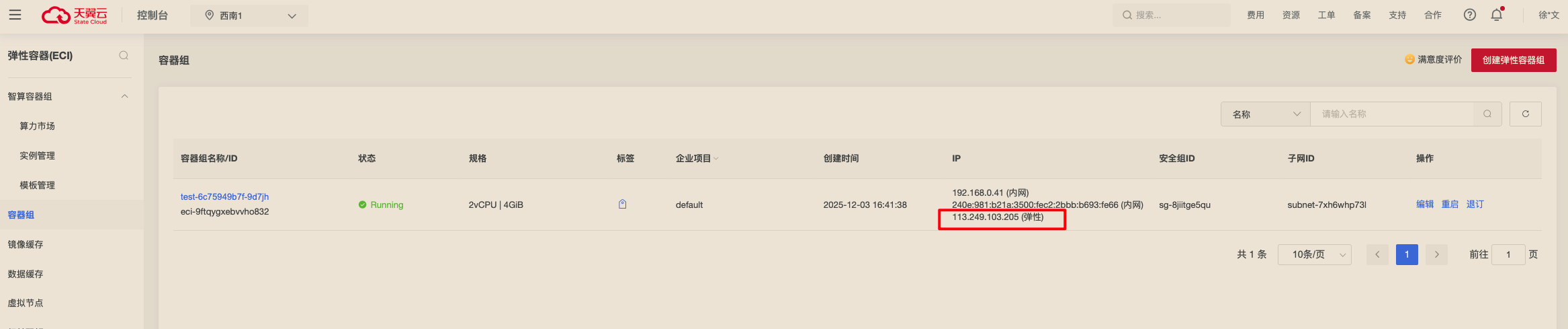

5. 创建完成可通过ECI 控制台查看生效。

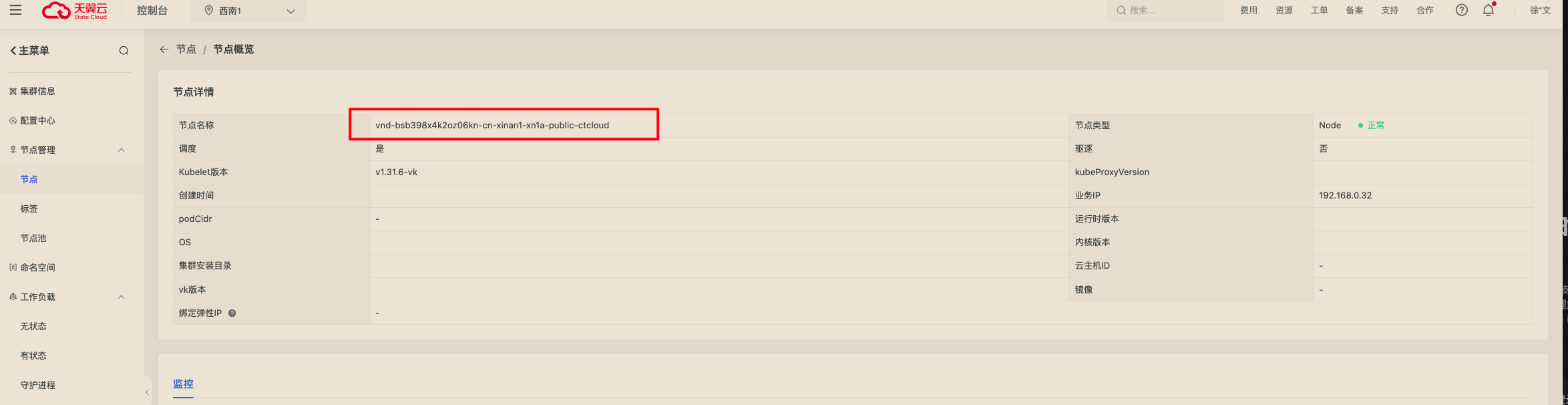

vnode 查询路径

1. 打开云容器引擎集群控制台，点击集群名称。

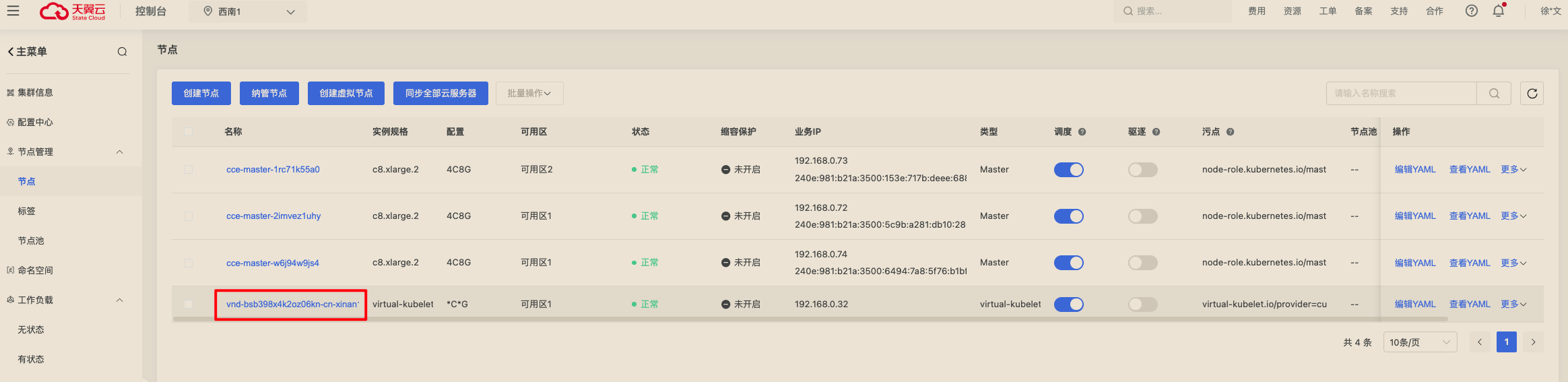

2. 选择节点管理菜单，点击节点，进入节点列表页。

3. vnd开头的节点即为vnode。
