操作场景

本示例以创建一个弹性负载均衡为例，介绍如何使用模板创建一个高可用架构。

不同架构内设云资源不同，本文及供参考。

操作步骤

1. 登录控制中心。

2. 在控制台首页搜索“资源编排ROS”，或在左侧产品导航栏选择“迁移与管理 > 管理工具 > 资源编排ROS”，进入资源编排控制台。

3. 在左侧导航栏选择 模板管理。

4. 在模板管理页面，单击创建模板。

5. 创建高可用架构的.tf模板示例如下，请参考文档创建模板完成模板配置。

terraform {
  required_providers {
    ctyun = {
      source = "ctyun-it/ctyun"
      version = "1.2.0"
    }
  }
}

provider "ctyun" {
  region_id  = "bb9fdb42056f11eda1610242ac110002" //选定资源池
  az_name    = "cn-huadong1-jsnj1A-public-ctcloud" //选定可用区
}

variable "instance_name" { //定义变量：云主机名称
  type      = string
  default = "tf-ecs-ha"
  description = "Name of EC instances to create"
}

variable "vpc_name" {  //定义变量：虚拟私有云名称
  type      = string
  default = "tf-vpc-ha"
  description = "Name of vpc to create"
}

variable "eip_name" { //定义变量：弹性IP名称
  type      = string
  default = "tf-eip-ha"
  description = "Name of eip to create"
}

variable "elb_name" { //定义变量：弹性负载均衡名称
  type      = string
  default = "tf-elb-ha"
  description = "Name of elb to create"
}

variable "instance_count" { //定义变量：创建弹性云主机数量，默认为1个
  type    = number
  default = 1
  description = "Number of EC instances to create"
}

variable "password" { //定义变量：云主机密码
  type      = string
  sensitive = true
}

resource "ctyun_vpc" "vpc_test" { //定义vpc资源：vpc_test
  name        = var.vpc_name
  cidr        = "192.168.0.0/16"
  description = "terraform测试使用"
  enable_ipv6 = true
}

resource "ctyun_subnet" "subnet_test" { //定义子网资源：subnet_test
  vpc_id      = ctyun_vpc.vpc_test.id
  name        = "tf-vpc-ha"
  cidr        = "192.168.1.0/24"
  description = "terraform测试使用"
  dns = [
    "114.114.114.114",
    "8.8.8.8",
    "8.8.4.4"
  ]
  enable_ipv6 = true
}

resource "ctyun_eip" "eip_test" { //定义弹性IP资源：eip_test
  name                = var.eip_name
  bandwidth           = 1
  cycle_type          = "on_demand"
  demand_billing_type = "bandwidth"
}

data "ctyun_zones" "test" {

}

locals {
  az1 = data.ctyun_zones.test.zones[0]
  az2 = data.ctyun_zones.test.zones[1]
}

output "az1" {
  value = local.az1
}

data "ctyun_images" "image_test" { //确定云主机镜像
  az_name    = local.az1
  name       = "CTyunOS 22.06 64 位"
  visibility = "public"
  page_no    = 1
  page_size  = 10
}
data "ctyun_ecs_flavors" "ecs_flavor_test" { //确定云主机参数
  az_name = local.az1
  cpu     = 2
  ram     = 4
  arch    = "x86"
  series  = "C"
  type    = "CPU_C7"
}

resource "ctyun_ecs" "ecs_test" { //定义云主机资源：ecs_test
  count = var.instance_count

  instance_name       = "${var.instance_name}-${count.index + 1}"
  display_name        = "${var.instance_name}-${count.index + 1}"

  flavor_id        = data.ctyun_ecs_flavors.ecs_flavor_test.flavors[0].id
  image_id         = data.ctyun_images.image_test.images[0].id
  is_destroy_instance  = true
  system_disk_type = "sata"
  system_disk_size = 40
  vpc_id           = ctyun_vpc.vpc_test.id
  password         = var.password
  az_name          = local.az1
  cycle_type       = "year"
  cycle_count      = 1
  subnet_id        = ctyun_subnet.subnet_test.id
}

# az2
data "ctyun_images" "image_test2" {
  az_name    = local.az2
  name       = "CentOS Linux 8.4"
  visibility = "public"
  page_no    = 1
  page_size  = 10
}

data "ctyun_ecs_flavors" "ecs_flavor_test2" {
  az_name = local.az2
  cpu     = 2
  ram     = 4
  arch    = "x86"
  series  = "C"
  type    = "CPU_C7"
}

resource "ctyun_ecs" "ecs_test2" { //定义云主机资源：ecs_test2
  instance_name    = "${var.instance_name}-2"
  display_name     = "${var.instance_name}-2"
  flavor_id        = data.ctyun_ecs_flavors.ecs_flavor_test2.flavors[0].id
  image_id         = data.ctyun_images.image_test2.images[0].id
  is_destroy_instance  = true
  system_disk_type = "sata"
  system_disk_size = 40
  vpc_id           = ctyun_vpc.vpc_test.id
  password         = var.password
  az_name          = local.az2
  cycle_type       = "year"
  cycle_count      = 1
  subnet_id        = ctyun_subnet.subnet_test.id
}

resource "ctyun_elb_loadbalancer" "test" { //定义弹性负载均衡资源：test
  az_name       = local.az1
  subnet_id     = ctyun_subnet.subnet_test.id
  name          = var.elb_name
  sla_name      = "elb.s2.small"
  resource_type = "external"
  vpc_id        = ctyun_vpc.vpc_test.id
  eip_id        = ctyun_eip.eip_test.id
  cycle_type    = "on_demand"
}

resource "ctyun_elb_listener" "elb_listener_test" { //定义弹性负载均衡监听器资源：elb_listener_test
  loadbalancer_id     = ctyun_elb_loadbalancer.test.id
  name                = "${var.elb_name}-listerer"
  protocol            = "TCP"
  protocol_port       = 456
  default_action_type = "forward"
  target_groups = [{ target_group_id = ctyun_elb_target_group.target_group_test.id }]
}

resource "ctyun_elb_target_group" "target_group_test" { //定义负载均衡后端主机组
  name      = "${var.elb_name}-targer-group"
  vpc_id    = ctyun_vpc.vpc_test.id
  algorithm = "wrr"
}

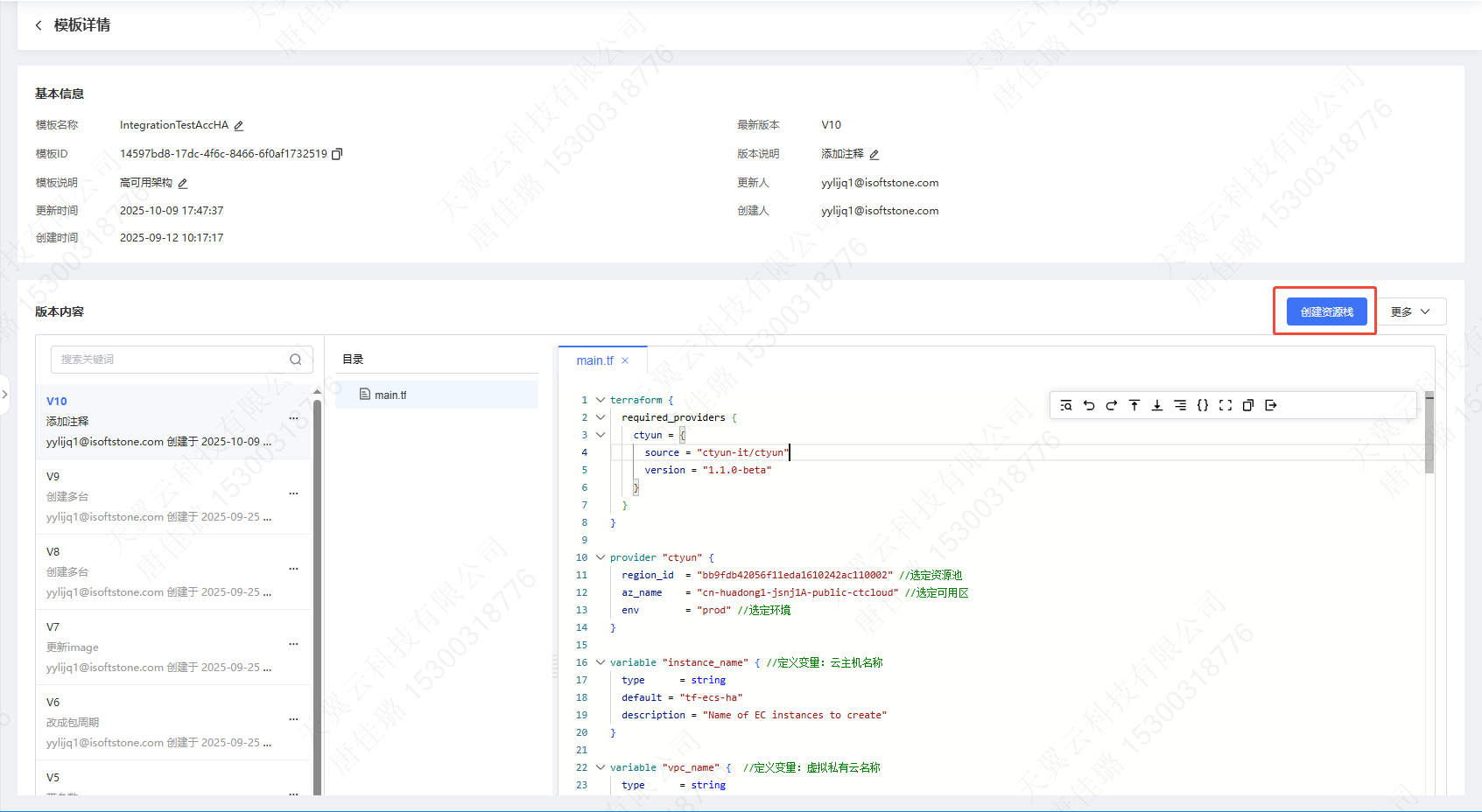

6. 在刚刚创建好的模板详情中，单击创建资源栈。

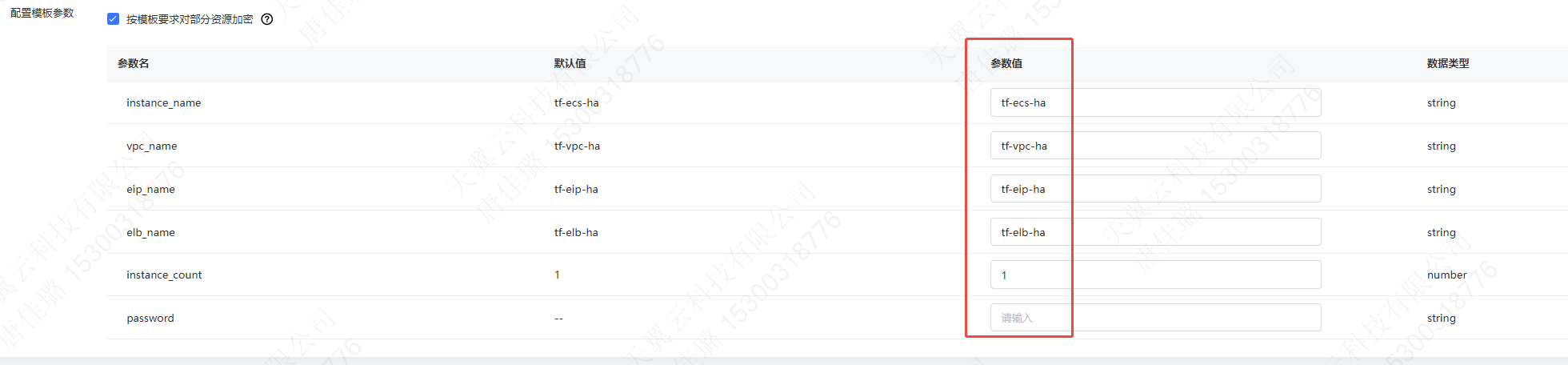

7. 参考创建资源栈，使用当前模板完成资源栈创建。

8. 参考部署资源栈，完成资源栈部署。

9. 部署完成后，您可前往对应资源控制台查看资源的创建结果。
