操作说明

本方案基于 天翼云 ROS（资源编排服务）控制台，实现云主机批量快速创建与销毁，有效提升资源交付效率，降低人工运维成本。

方案内置两类标准化编排模板，分别支持同配置批量创建与多规格差异化创建两种场景，用户可根据业务规模与实例需求灵活选用，快速完成批量资源部署。

适用场景

• 云主机批量快速搭建

• 多环境标准化批量部署

• 临时业务资源快速创建与释放

操作步骤

1. 登录控制中心。

2. 在控制台首页搜索“资源编排ROS”，或在左侧产品导航栏选择“管理工具 > 资源编排ROS”，进入资源编排控制台。

3. 在左侧导航栏选择 模板管理。

4. 在模板管理页面，单击创建模板，可参考创建模板完成模板配置。

5. 模板默认基于华东1资源池, 可以根据需要可以进行调整。

模板1：创建多台相同配置云主机，模板使用count语法实现

terraform {
  required_providers {
    ctyun = {
      source  = "ctyun-it/ctyun"
      version = "2.1.0"
    }
  }
}

provider "ctyun" {
  az_name = var.az_name
}

variable "az_name" {
  type        = string
  default     = "cn-huadong1-jsnj1A-public-ctcloud"
  description = "可用区名称"
}

variable "instance_name" {
  type        = string
  default     = "test-ecs"
  description = "云主机名称"
}

variable "instance_count" {
  type        = number
  default     = 4
  description = "云主机数量"
}

variable "image_id" {
  type        = string
  default     = "f9415853-b07d-4dd8-afb7-f48e10de151e"
  description = "镜像ID"
}

variable "flavor_name" {
  type        = string
  default     = "c7.xlarge.2"
  description = "规格名称"
}

variable "system_disk_type" {
  type        = string
  default     = "SAS"
  description = "系统盘类型"
}

variable "system_disk_size" {
  type        = number
  default     = 40
  description = "系统盘大小"
}

variable "password" {
  type        = string
  sensitive   = true
  description = "密码"
}

variable "bandwidth" {
  type        = number
  default     = 10
  description = "公网带宽"
}

# 创建vpc
resource "ctyun_vpc" "vpc_test" {
  name        = "vpc-for-ecs"
  cidr        = "192.168.0.0/16"
  description = "terraform测试使用"
  enable_ipv6 = true
}

# 在vpc下创建子网
resource "ctyun_subnet" "subnet_test" {
  vpc_id      = ctyun_vpc.vpc_test.id
  name        = "subnet-for-ecs"
  cidr        = "192.168.1.0/24"
  description = "terraform测试使用"
  dns = [
    "114.114.114.114",
    "8.8.8.8",
  ]
  enable_ipv6 = true
}

# 开通N台按需云主机
resource "ctyun_ecs" "ecs_test" {
  count            = var.instance_count
  instance_name    = "${var.instance_name}-${count.index + 1}"
  display_name     = "${var.instance_name}-${count.index + 1}"
  flavor_name      = var.flavor_name
  image_id         = var.image_id
  system_disk_type = var.system_disk_type
  system_disk_size = var.system_disk_size
  password         = var.password
  bandwidth        = var.bandwidth
  cycle_type       = "on_demand"
  vpc_id           = ctyun_vpc.vpc_test.id
  subnet_id        = ctyun_subnet.subnet_test.id
}

模板2：创建多台配置不同的云主机，模板使用for_each语法实现

terraform {
  required_providers {
    ctyun = {
      source  = "ctyun-it/ctyun"
      version = "2.1.0"
    }
  }
}

provider "ctyun" {
  az_name = var.az_name
}

variable "az_name" {
  type        = string
  default     = "cn-huadong1-jsnj1A-public-ctcloud"
  description = "可用区名称"
}

variable "password" {
  type      = string
  sensitive = true
  description   = "密码"
}

# 创建vpc
resource "ctyun_vpc" "vpc_test" {
  name        = "vpc-for-ecs2"
  cidr        = "192.168.0.0/16"
  description = "terraform测试使用"
  enable_ipv6 = true
}

# 在vpc下创建子网
resource "ctyun_subnet" "subnet_test" {
  vpc_id      = ctyun_vpc.vpc_test.id
  name        = "subnet-for-ecs2"
  cidr        = "192.168.1.0/24"
  description = "terraform测试使用"
  dns = [
    "114.114.114.114",
    "8.8.8.8",
  ]
  enable_ipv6 = true
}

# 创建两台不同配置的云主机
locals {
  ecs = [
    {
      key              = "test1"
      display_name     = "tf-ecs-1"
      instance_name    = "tf-ecs-1"
      flavor_name      = "s7.large.2"
      image_id         = "f9415853-b07d-4dd8-afb7-f48e10de151e"
      system_disk_type = "SATA"
      system_disk_size = 500
      subnet_id        = ctyun_subnet.subnet_test.id
      vpc_id           = ctyun_vpc.vpc_test.id
      password         = var.password
      bandwidth        = null
      cycle_type       = "month"
      cycle_count      = 3
    },
    {
      key              = "test2"
      display_name     = "tf-ecs-2"
      instance_name    = "tf-ecs-2"
      flavor_name      = "s7.large.4"
      system_disk_type = "SAS"
      system_disk_size = 120
      image_id         = "f9415853-b07d-4dd8-afb7-f48e10de151e"
      subnet_id        = ctyun_subnet.subnet_test.id
      vpc_id           = ctyun_vpc.vpc_test.id
      password         = var.password
      bandwidth        = 10
      cycle_type       = "on_demand"
      cycle_count      = null
    },
  ]
}

resource "ctyun_ecs" "ecs_test" {
  for_each            = { for s in local.ecs : s.key => s }
  display_name        = each.value.display_name
  instance_name       = each.value.instance_name
  flavor_name         = each.value.flavor_name
  image_id            = each.value.image_id
  system_disk_type    = each.value.system_disk_type
  system_disk_size    = each.value.system_disk_size
  vpc_id              = each.value.vpc_id
  subnet_id           = each.value.subnet_id
  cycle_type          = each.value.cycle_type
  cycle_count         = each.value.cycle_count
  bandwidth           = each.value.bandwidth
  password            = each.value.password
  is_destroy_instance = true # 包周期退订时进行销毁
}

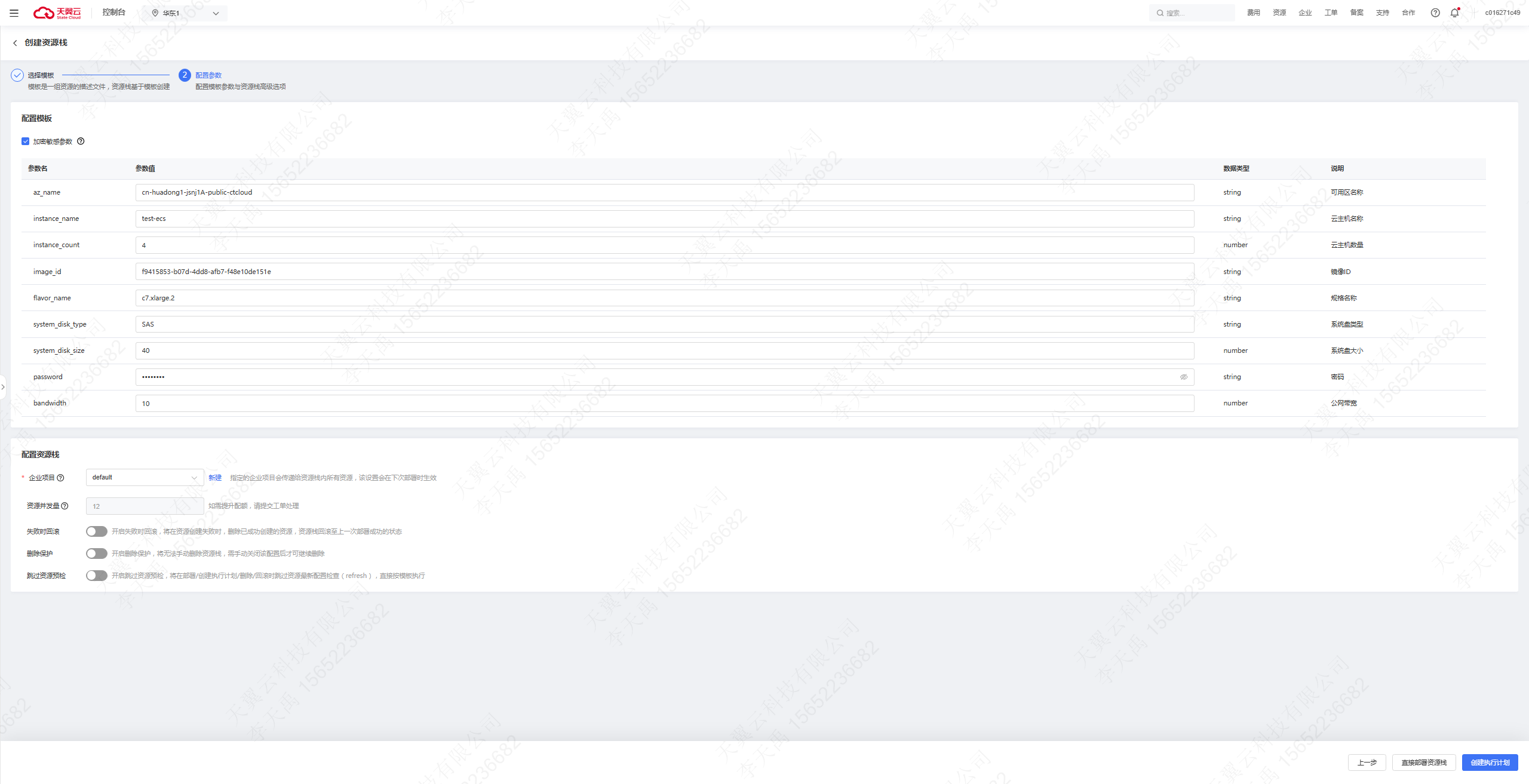

6. 这里以模板1为例，在资源栈管理中，选择刚才创建的模板，并填写参数触发资源栈的创建。可参考创建资源栈

7.

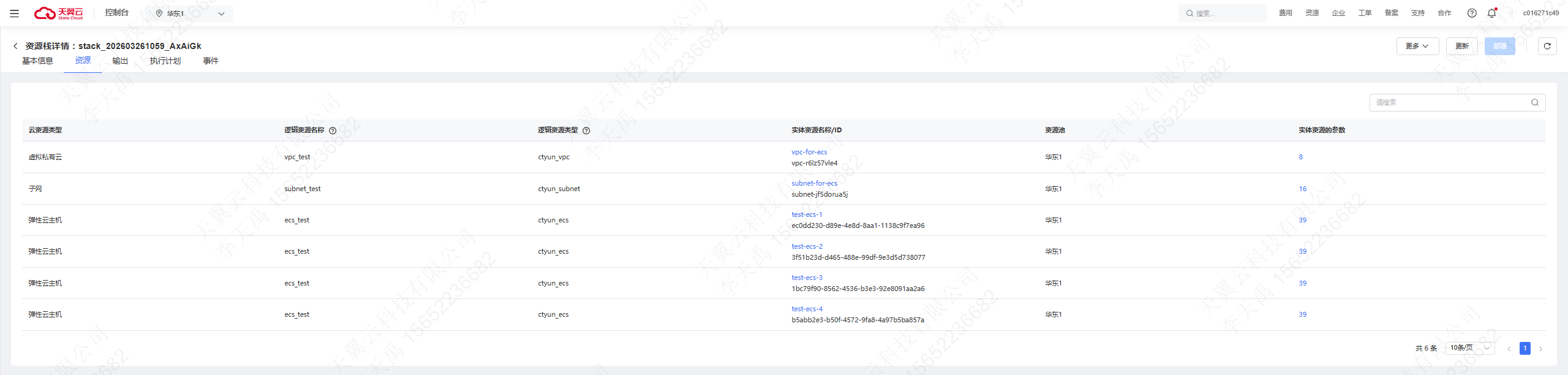

8. 参考部署资源栈，完成资源栈部署。部署完成后，您可前往对应资源栈控制台查看资源的创建结果。



9.  云主机使用完毕，可以点击删除按钮一键删除。

10. 关于count和for_each语法的更多细节，可参考模板参考-配置指南中的Meta-arguments。
