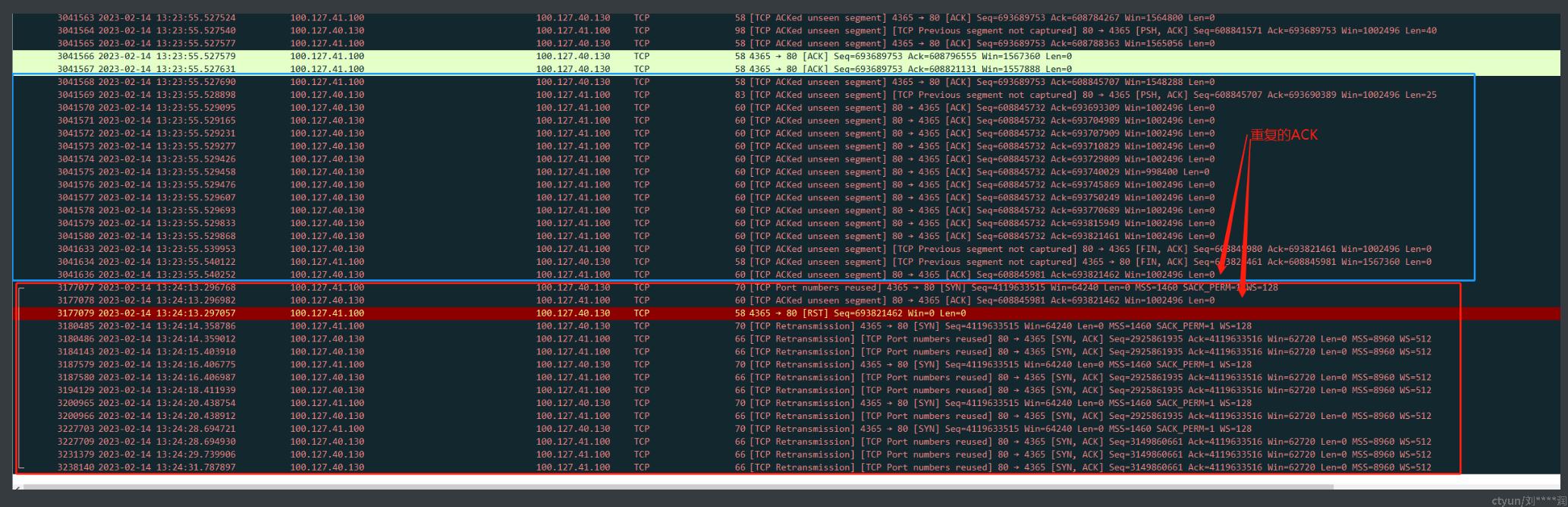

客户端抓包，可见如下报文，首先怀疑服务端丢弃了RST后的SYN报文，导致连接无法建立。

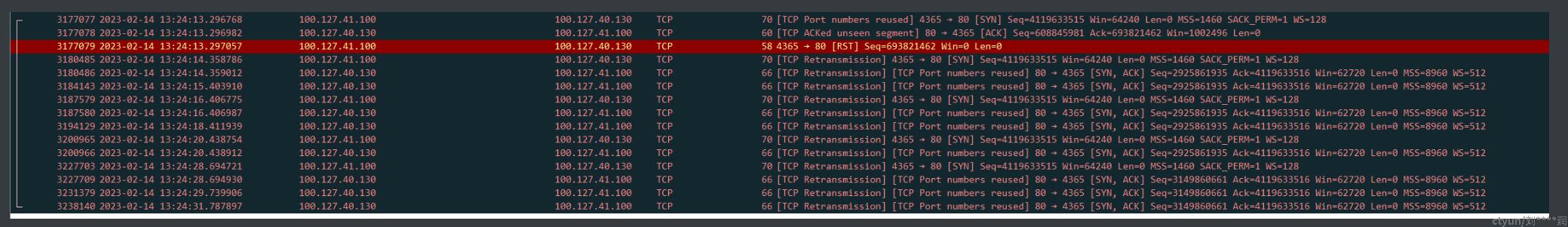

服务端为何对 SYN 报文响应了普通的 ACK, 且 Seq不匹配？
Linux内核实现代码如下，可见是 通过 (after(TCP_SKB_CB(skb)->seq, tcptw->tw_rcv_nxt)
enum tcp_tw_status
tcp_timewait_state_process(struct inet_timewait_sock *tw, struct sk_buff *skb,
const struct tcphdr *th)
{
.......
....
if (th->syn && !th->rst && !th->ack && !paws_reject &&
(after(TCP_SKB_CB(skb)->seq, tcptw->tw_rcv_nxt) ||
(tmp_opt.saw_tstamp &&
(s32)(tcptw->tw_ts_recent - tmp_opt.rcv_tsval) < 0))) {
u32 isn = tcptw->tw_snd_nxt + 65535 + 2;
if (isn == 0)
isn++;
TCP_SKB_CB(skb)->tcp_tw_isn = isn;
return TCP_TW_SYN;
}
if (paws_reject)
__NET_INC_STATS(twsk_net(tw), LINUX_MIB_PAWSESTABREJECTED);
if (!th->rst) {
/* In this case we must reset the TIMEWAIT timer.
*
* If it is ACKless SYN it may be both old duplicate
* and new good SYN with random sequence number <rcv_nxt.
* Do not reschedule in the last case.
*/
if (paws_reject || th->ack)
inet_twsk_reschedule(tw, TCP_TIMEWAIT_LEN);
return tcp_timewait_check_oow_rate_limit(
tw, skb, LINUX_MIB_TCPACKSKIPPEDTIMEWAIT);
}
....
....
}
其中after宏的定义如下, after(4119633515 , 693821462) ==> before(693821462,4119633515 ) ==> (__s32) (693821462 - 4119633515) = 869155243 **>0**, 因此 不满足after条件，因而 130 端回复了 旧连接的 ACK 报文， 由此分析 130 端回复重复的ACK是 Linux TCP 协议栈实现的正常行为。
/*
* The next routines deal with comparing 32 bit unsigned ints
* and worry about wraparound (automatic with unsigned arithmetic).
*/
static inline bool before(__u32 seq1, __u32 seq2)
{
return (__s32)(seq1-seq2) < 0;
}
#define after(seq2, seq1) before(seq1, seq2)
## 结论

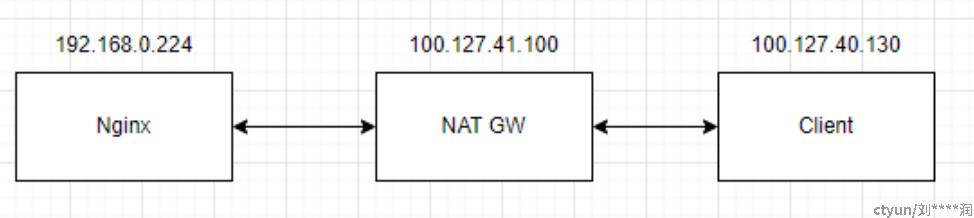

此问题由 NAT 网关 端口复用引起， 2MSL内复用端口，对TCP的特殊情况处理欠缺，导致报文投递存在问题，导致连接无法建立；需要在宿主机和NAT网关进一步分析报文未投递到云主机的原因。
参考代码： tcp_timewait_state_process
/*
* * Main purpose of TIME-WAIT state is to close connection gracefully,
* when one of ends sits in LAST-ACK or CLOSING retransmitting FIN
* (and, probably, tail of data) and one or more our ACKs are lost.
* * What is TIME-WAIT timeout? It is associated with maximal packet
* lifetime in the internet, which results in wrong conclusion, that
* it is set to catch "old duplicate segments" wandering out of their path.
* It is not quite correct. This timeout is calculated so that it exceeds
* maximal retransmission timeout enough to allow to lose one (or more)
* segments sent by peer and our ACKs. This time may be calculated from RTO.
* * When TIME-WAIT socket receives RST, it means that another end
* finally closed and we are allowed to kill TIME-WAIT too.
* * Second purpose of TIME-WAIT is catching old duplicate segments.
* Well, certainly it is pure paranoia, but if we load TIME-WAIT
* with this semantics, we MUST NOT kill TIME-WAIT state with RSTs.
* * If we invented some more clever way to catch duplicates
* (f.e. based on PAWS), we could truncate TIME-WAIT to several RTOs.
*
* The algorithm below is based on FORMAL INTERPRETATION of RFCs.
* When you compare it to RFCs, please, read section SEGMENT ARRIVES
* from the very beginning.
*
* NOTE. With recycling (and later with fin-wait-2) TW bucket
* is _not_ stateless. It means, that strictly speaking we must
* spinlock it. I do not want! Well, probability of misbehaviour
* is ridiculously low and, seems, we could use some mb() tricks
* to avoid misread sequence numbers, states etc. --ANK
*
* We don't need to initialize tmp_out.sack_ok as we don't use the results
*/
enum tcp_tw_status
tcp_timewait_state_process(struct inet_timewait_sock *tw, struct sk_buff *skb,
const struct tcphdr *th)
{
struct tcp_options_received tmp_opt;
struct tcp_timewait_sock *tcptw = tcp_twsk((struct sock *)tw);
bool paws_reject = false;
tmp_opt.saw_tstamp = 0;
if (th->doff > (sizeof(*th) >> 2) && tcptw->tw_ts_recent_stamp) {
tcp_parse_options(twsk_net(tw), skb, &tmp_opt, 0, NULL);
if (tmp_opt.saw_tstamp) {
if (tmp_opt.rcv_tsecr)
tmp_opt.rcv_tsecr -= tcptw->tw_ts_offset;
tmp_opt.ts_recent = tcptw->tw_ts_recent;
tmp_opt.ts_recent_stamp = tcptw->tw_ts_recent_stamp;
paws_reject = tcp_paws_reject(&tmp_opt, th->rst);
}
}
if (tw->tw_substate == TCP_FIN_WAIT2) {
/* Just repeat all the checks of tcp_rcv_state_process() */
/* Out of window, send ACK */
if (paws_reject ||
!tcp_in_window(TCP_SKB_CB(skb)->seq, TCP_SKB_CB(skb)->end_seq,
tcptw->tw_rcv_nxt,
tcptw->tw_rcv_nxt + tcptw->tw_rcv_wnd))
return tcp_timewait_check_oow_rate_limit(
tw, skb, LINUX_MIB_TCPACKSKIPPEDFINWAIT2);
if (th->rst)
goto kill;
if (th->syn && !before(TCP_SKB_CB(skb)->seq, tcptw->tw_rcv_nxt))
return TCP_TW_RST;
/* Dup ACK? */
if (!th->ack ||
!after(TCP_SKB_CB(skb)->end_seq, tcptw->tw_rcv_nxt) ||
TCP_SKB_CB(skb)->end_seq == TCP_SKB_CB(skb)->seq) {
inet_twsk_put(tw);
return TCP_TW_SUCCESS;
}
/* New data or FIN. If new data arrive after half-duplex close,
* reset.
*/
if (!th->fin ||
TCP_SKB_CB(skb)->end_seq != tcptw->tw_rcv_nxt + 1)
return TCP_TW_RST;
/* FIN arrived, enter true time-wait state. */
tw->tw_substate = TCP_TIME_WAIT;
tcptw->tw_rcv_nxt = TCP_SKB_CB(skb)->end_seq;
if (tmp_opt.saw_tstamp) {
tcptw->tw_ts_recent_stamp = ktime_get_seconds();
tcptw->tw_ts_recent = tmp_opt.rcv_tsval;
}
inet_twsk_reschedule(tw, TCP_TIMEWAIT_LEN);
return TCP_TW_ACK;
}
/*
* Now real TIME-WAIT state.
*
* RFC 1122:
* "When a connection is [...] on TIME-WAIT state [...]
* [a TCP] MAY accept a new SYN from the remote TCP to
* reopen the connection directly, if it:
*
* (1) assigns its initial sequence number for the new
* connection to be larger than the largest sequence
* number it used on the previous connection incarnation,
* and
*
* (2) returns to TIME-WAIT state if the SYN turns out
* to be an old duplicate".
*/
if (!paws_reject &&
(TCP_SKB_CB(skb)->seq == tcptw->tw_rcv_nxt &&
(TCP_SKB_CB(skb)->seq == TCP_SKB_CB(skb)->end_seq || th->rst))) {
/* In window segment, it may be only reset or bare ack. */
if (th->rst) {
/* This is TIME_WAIT assassination, in two flavors.
* Oh well... nobody has a sufficient solution to this
* protocol bug yet.
*/
if (twsk_net(tw)->ipv4.sysctl_tcp_rfc1337 == 0) {
kill:
inet_twsk_deschedule_put(tw);
return TCP_TW_SUCCESS;
}
} else {
inet_twsk_reschedule(tw, TCP_TIMEWAIT_LEN);
}
if (tmp_opt.saw_tstamp) {
tcptw->tw_ts_recent = tmp_opt.rcv_tsval;
tcptw->tw_ts_recent_stamp = ktime_get_seconds();
}
inet_twsk_put(tw);
return TCP_TW_SUCCESS;
}
/* Out of window segment.
All the segments are ACKed immediately.
The only exception is new SYN. We accept it, if it is
not old duplicate and we are not in danger to be killed
by delayed old duplicates. RFC check is that it has
newer sequence number works at rates <40Mbit/sec.
However, if paws works, it is reliable AND even more,
we even may relax silly seq space cutoff.
RED-PEN: we violate main RFC requirement, if this SYN will appear
old duplicate (i.e. we receive RST in reply to SYN-ACK),
we must return socket to time-wait state. It is not good,
but not fatal yet.
*/
if (th->syn && !th->rst && !th->ack && !paws_reject &&
(after(TCP_SKB_CB(skb)->seq, tcptw->tw_rcv_nxt) ||
(tmp_opt.saw_tstamp &&
(s32)(tcptw->tw_ts_recent - tmp_opt.rcv_tsval) < 0))) {
u32 isn = tcptw->tw_snd_nxt + 65535 + 2;
if (isn == 0)
isn++;
TCP_SKB_CB(skb)->tcp_tw_isn = isn;
return TCP_TW_SYN;
}
if (paws_reject)
__NET_INC_STATS(twsk_net(tw), LINUX_MIB_PAWSESTABREJECTED);
if (!th->rst) {
/* In this case we must reset the TIMEWAIT timer.
*
* If it is ACKless SYN it may be both old duplicate
* and new good SYN with random sequence number <rcv_nxt.
* Do not reschedule in the last case.
*/
if (paws_reject || th->ack)
inet_twsk_reschedule(tw, TCP_TIMEWAIT_LEN);
return tcp_timewait_check_oow_rate_limit(
tw, skb, LINUX_MIB_TCPACKSKIPPEDTIMEWAIT);
}
inet_twsk_put(tw);
return TCP_TW_SUCCESS;
}
EXPORT_SYMBOL(tcp_timewait_state_process);

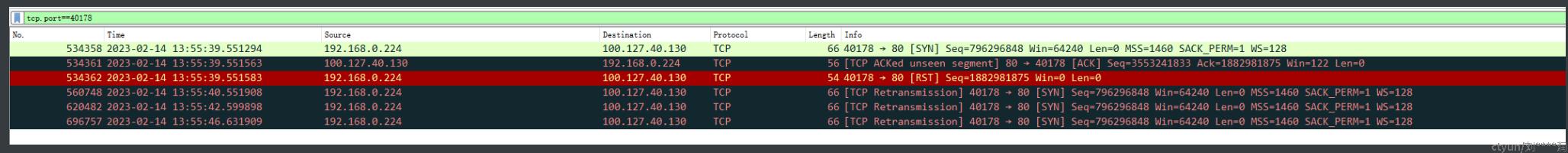

服务端返回了 旧的ACK， 导致 Client 发送了 RST 报文。 服务端收到 RST 后， 旧的socket将被kill，再到来的 SYN 可以建立新连接，此时重传的 SYN 在服务端应该正常响应 SYN+ACK， 因此服务端继续回复 SYN + ACK 的行为是符合预期的正常行为。
