一、 前置步骤

如何获取 AK/SK

• Access Key：简写为AK，对http请求进行签名，签名机制是为了访问更加安全, access key为用户独有，并作为身份标识；
• Secret Key：简写为SK，用户私有的，请勿给他人。

调用智能边缘云 OpenAPI 需要 AK/SK 认证鉴权，下面为 AK/SK 获取方法：

AK/SK 从 天翼云 IAM 申请，获取地址：https://vip.ctcdn.cn/

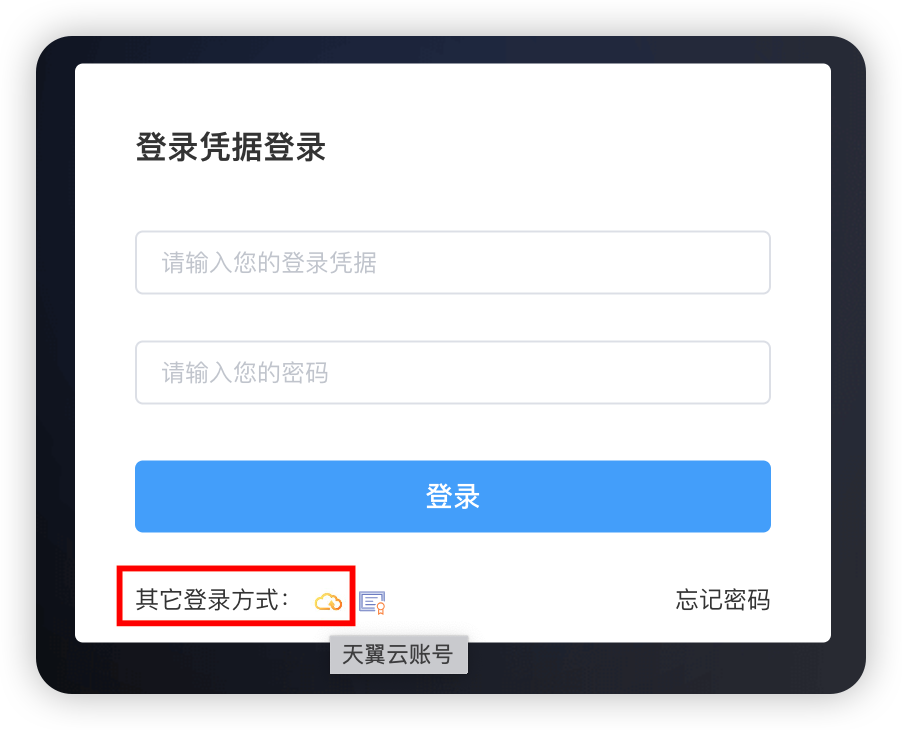

登录页面中选择【天翼云账号】登录，如下图所示：

登录后，在左侧【个人中心】下，选择【AccessKey管理】，点击【新增】，工作区选择【系统内置工作区】。

创建 AK 后，点击查看，验证后就可以获取到 SK。

充值与集群自助权限申请

调用 OpenAPI 开通资源前，需要确保账户下有集群自助权限，确认地址：https://ecx.ctyun.cn/vm/vm/list ；

• 账号充值：按需开通资源时，要求可用现金余额最少100元；
• 如果在租户控制台创建资源时没有集群可选项(下图 ①)，请找售后或运营申请集群自助权限；
• 如果在租户控制台看到集群下没有配额(下图 ②)，请找售后或运营申请资源配额。

调用地址

API 的调用地址：https://ecx-global.ctapi.ctyun.cn

二、签名示例

认证头部header部分

Python

Python SDK 下载地址：https://eop.ctyun.cn/ebp/static/sdk/py/ctapi_sdk_python.py

调用方法：将下面代码复制到下载的 sdk 代码最下面后执行

# 认证信息
ak = "your ak"
sk = "your sk"
endpoint = "https://ecx-global.ctapi.ctyun.cn"

# 请求路径
path1 = "/v3/cluster/describeRegionClusters"
path2 = "/v3/cluster/describeInstanceSpec"
path3 = "/v3/vpc/createVPC"

# 请求参数
params1 = {}
params2 = {"nodeCode": "hn-changde-1"}
params3 = {"nodeCode": "hn-changde-1"}

# 发起请求
response1 = get(f"{endpoint}{path1}", params1)
response2 = get(f"{endpoint}{path2}", params2)
response3 = post(f"{endpoint}{path2}", "", params3)

# 打印响应
print("Response for describeRegionClusters:")
print(json.loads(response1))

print("\nResponse for describeInstanceSpec:")
print(json.loads(response2))

Golang

Go SDK 下载地址：https://eop.ctyun.cn/ebp/static/sdk/go/ctapi_sdk_go.zip

调用方法：下面代码包括了 sdk 代码和调用示例

package main

import (
	"bytes"
	"crypto/hmac"
	"crypto/sha256"
	"encoding/base64"
	"encoding/json"
	"fmt"
	"io/ioutil"
	"net/http"
	"sort"
	"strings"
	"time"

	"github.com/google/uuid"
)

const (
	METHOD_GET    = "GET"
	METHOD_POST   = "POST"
	METHOD_HEAD   = "HEAD"
	METHOD_PATCH  = "PATCH"
	METHOD_PUT    = "PUT"
	METHOD_DELETE = "DELETE"
)

var (
	ak       = "ak"
	sk       = "sk"
	endpoint = "https://ecx-global.ctapi.ctyun.cn"
)

func hmacSHA256(secret, data string) []byte {
	h := hmac.New(sha256.New, []byte(secret))
	h.Write([]byte(data))
	return h.Sum(nil)
}

func base64OfHmac(data []byte) string {
	return base64.StdEncoding.EncodeToString(data)
}

func getRequestUUID() string {
	return uuid.New().String()
}

func getSortedStr(data map[string]interface{}) string {
	keys := make([]string, 0, len(data))
	for k := range data {
		keys = append(keys, k)
	}
	sort.Strings(keys)

	var strList []string
	for _, k := range keys {
		strList = append(strList, fmt.Sprintf("%s=%v", k, data[k]))
	}
	return strings.Join(strList, "&")
}

func buildSign(ak, sk string, queryParams, bodyParams map[string]interface{}, eopDate, requestUUID, method string, file bool, contentType string) string {
	var bodyStr string
	if !file {
		if bodyParams != nil {
			bodyBytes, _ := json.Marshal(bodyParams)
			bodyStr = string(bodyBytes)
		}
	}

	var bodyDigest string
	if method == METHOD_POST || method == METHOD_PUT {
		if file {
			bodyDigest = fmt.Sprintf("%x", sha256.Sum256([]byte(bodyStr)))
		} else {
			bodyBytes, _ := json.Marshal(bodyParams)
			bodyDigest = fmt.Sprintf("%x", sha256.Sum256(bodyBytes))
		}
	} else {
		bodyDigest = fmt.Sprintf("%x", sha256.Sum256([]byte(bodyStr)))
	}

	headerStr := fmt.Sprintf("ctyun-eop-request-id:%s\neop-date:%s\n", requestUUID, eopDate)
	queryStr := getSortedStr(queryParams)
	signatureStr := fmt.Sprintf("%s\n%s\n%s", headerStr, queryStr, bodyDigest)

	printLog(fmt.Sprintf("signature_str is: %s", signatureStr))

	kTime := hmacSHA256(sk, eopDate)
	kAk := hmacSHA256(string(kTime), ak)
	kDate := hmacSHA256(string(kAk), strings.Split(eopDate, "T")[0])

	signatureBase64 := base64OfHmac(hmacSHA256(string(kDate), signatureStr))
	signHeader := fmt.Sprintf("%s Headers=ctyun-eop-request-id;eop-date Signature=%s", ak, signatureBase64)
	return signHeader
}

func getSignHeaders(ak, sk string, queryParams, body map[string]interface{}, method, contentType string, file bool, uuid string) map[string]string {
	now := time.Now()
	eopDate := now.Format("20060102T150405Z")
	headers := map[string]string{
		"Content-type":         contentType,
		"ctyun-eop-request-id": uuid,
		"Eop-Authorization":    buildSign(ak, sk, queryParams, body, eopDate, uuid, method, file, contentType),
		"Eop-date":             eopDate,
	}
	return headers
}

func execute(ak, sk, urlStr, method string, queryParams, bodyParams map[string]interface{}, headerParams map[string]string, contentType string, file bool) (string, error) {
	queryStr := getSortedStr(queryParams)
	requestUUID := getRequestUUID()
	headers := getSignHeaders(ak, sk, queryParams, bodyParams, method, contentType, file, requestUUID)

	for k, v := range headerParams {
		headers[k] = v
	}

	if len(queryStr) > 0 {
		urlStr = fmt.Sprintf("%s?%s", urlStr, queryStr)
	}

	var reqBody []byte
	if bodyParams != nil {
		reqBody, _ = json.Marshal(bodyParams)
	}

	fmt.Println("Request URL:", urlStr)
	fmt.Println("Request Method:", method)
	fmt.Println("Request Headers:", headers)
	fmt.Println("Request Body:", string(reqBody))

	req, err := http.NewRequest(method, urlStr, bytes.NewBuffer(reqBody))
	if err != nil {
		return "", err
	}

	for k, v := range headers {
		req.Header.Set(k, v)
	}

	client := &http.Client{}
	resp, err := client.Do(req)
	if err != nil {
		return "", err
	}
	defer resp.Body.Close()

	body, _ := ioutil.ReadAll(resp.Body)
	fmt.Println("Response Status:", resp.Status)
	fmt.Println("Response Headers:", resp.Header)
	fmt.Println("Response Body:", string(body))

	return string(body), nil
}

/* ********************************* 调用示例 *********************************************** */
func printLog(logInfo string) {
	now := time.Now()
	logInfo = fmt.Sprintf("[%s]: %s", now.Format("2006-01-02 15:04:05"), logInfo)
	fmt.Println(logInfo)
}

func main() {
	path1 := "/v3/cluster/describeRegionClusters"
	path2 := "/v3/cluster/describeInstanceSpec"

	params1 := map[string]interface{}{}
	params2 := map[string]interface{}{"nodeCode": "hn-changde-1"}

	response1, err := execute(ak, sk, endpoint+path1, METHOD_GET, params1, nil, nil, "application/json;charset=UTF-8", false)
	if err != nil {
		fmt.Println("Error:", err)
		return
	}
	fmt.Println("Response for describeRegionClusters:")
	fmt.Println(response1)

	response2, err := execute(ak, sk, endpoint+path2, METHOD_GET, params2, nil, nil, "application/json;charset=UTF-8", false)
	if err != nil {
		fmt.Println("Error:", err)
		return
	}
	fmt.Println("\nResponse for describeInstanceSpec:")
	fmt.Println(response2)
}

三、OpenAPI 接口文档

接口文档地址： https://eop.ctyun.cn/ebp/ctapiDocument/search?sid=69&data=55

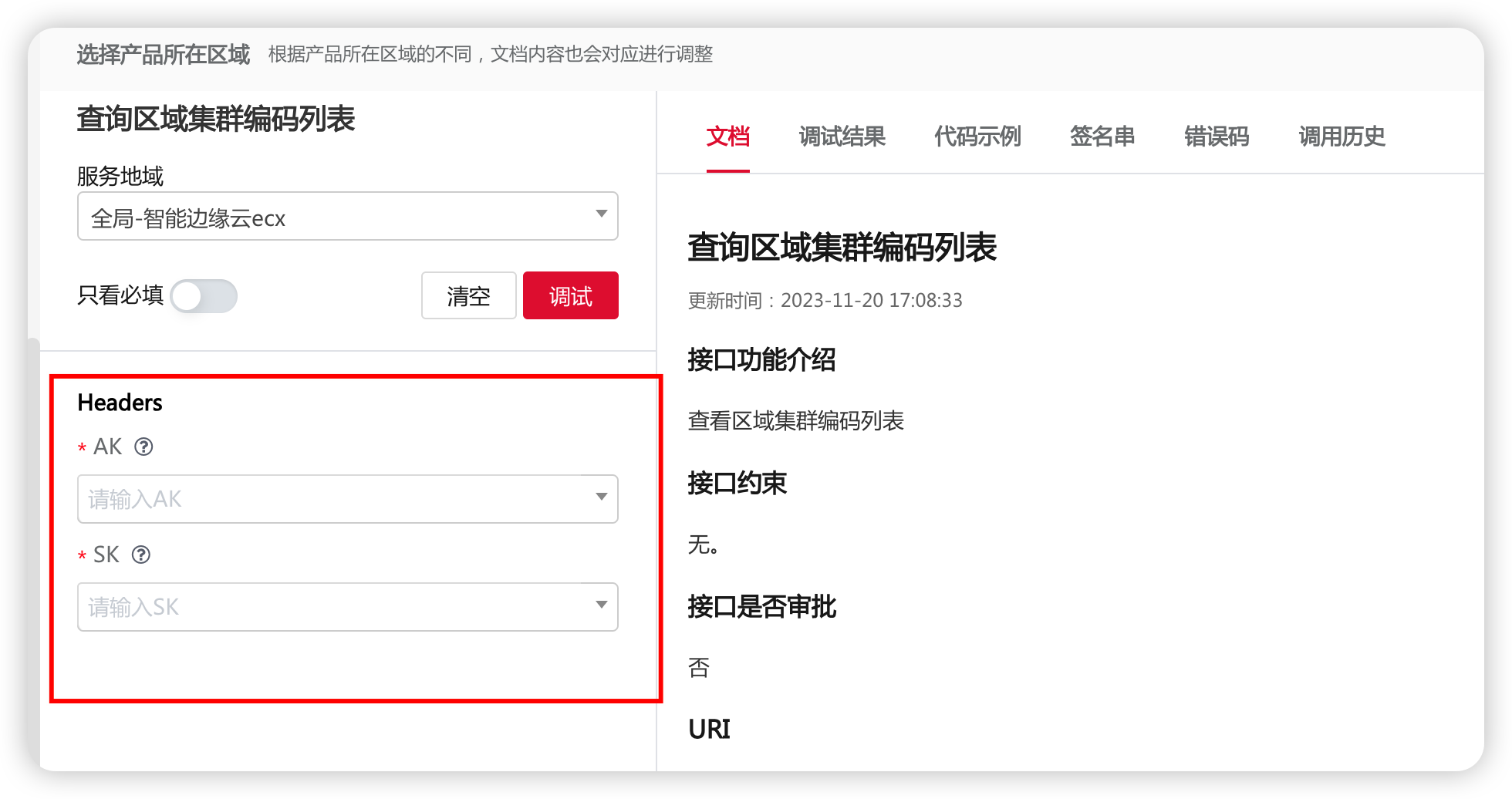

接口在线调试，如下图所示，填写 AK/SK 后测试接口：

SDK 下载地址：
